Cryogenic Ball Valves

4 Way Flanged Ball Valves

BV4B-4DF - PN16 4 Way Flanged Ball Valve

SPECIFICATIONS
Available Material	1.4408/1.4308/1.0619
Working Pressure	DIN PN16
Ball Bore	Full
End Connection	EN1092-1
Size Range	CF8M - 1/2" to 6 "
ISO Mount	Direct

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE/PTFE+25%GL/PTFE+50%SS/TFM1600/TFM4215

undefined

DIN-standard Four-Way Flanged Ball Valve

undefined

BV4B-4DF-PN16 4 Way Flanged Ball Valve

SPECIFICATIONS
* Working Pressure: 1/2”~6” PN16
* Temperature Range: -15～150℃(PTFE)
* Flange End:EN1092-1
* Blow-Out-Proof Stem Design
* ISO5211 Direct-Mounting of Actuators of Valves Design
* Locking Device (option)
* Full port I/L/T/X

Drawing of DIN-standard Four-Way Flanged Ball Valve

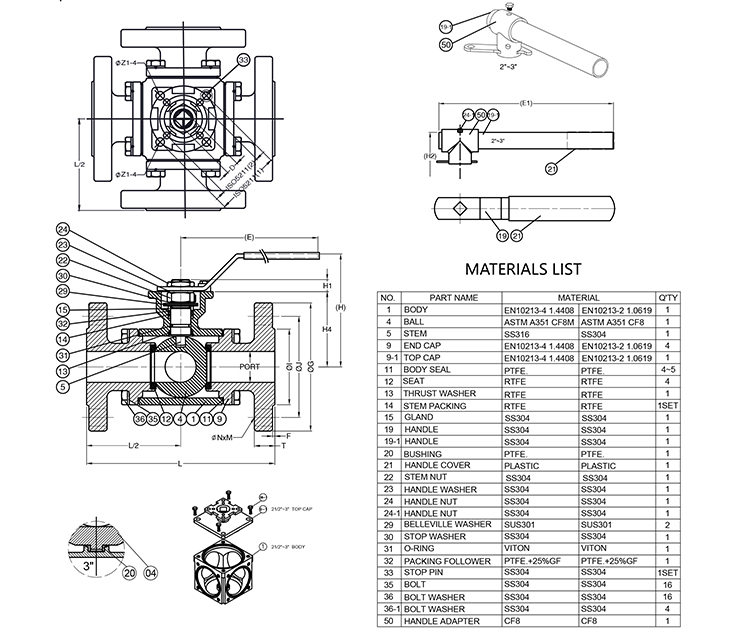

Drawing of DIN-standard Four-Way Flanged Ball Valve-1
